脉冲信号处理插件

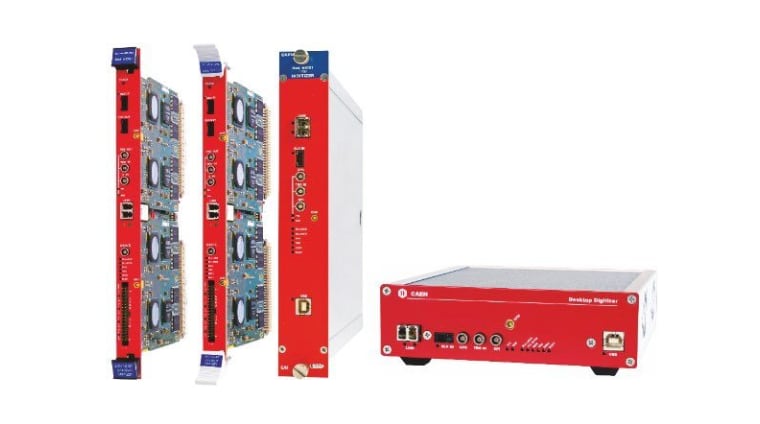

脉冲波形数字化仪

CAEN数字化仪是独立于平台的仪器，具有高速（最高5 GS / s）多通道ADC，具有本地存储器和FPGA，可用于实时数据处理。

型号 图片 规格 通道数 最大采样率 (MS/s) 带宽 (MHz) 分辨率 (bits) 缓存 (Samples/ch) 途径
DT5720 DT5720 Desktop 4 / 2 250 125 12 1.25 M / 10 M QUOTE
DT5724 DT5724 Desktop 4 / 2 100 40 14 512 k / 4 M QUOTE
DT5725 DT5725 Desktop 8 250 125 14 640 k / 5.12 M QUOTE
DT5730 DT5730 Desktop 8 500 250 14 640 k / 5.12 M QUOTE
DT5740 DT5740 Desktop 32(SMC conn.) – 16(MCX conn) 62.5 30 12 192 k QUOTE
DT5740D DT5740D Desktop 32(SMC conn.) – 16(MCX conn) 62.5 30 12 192 k QUOTE
DT5742 DT5742 Desktop 16 + 1 5000 (Based on DRS4 chip: 5 GS/s Switched Capacitor Array, 8+1 channels with 1024 storage cells each.) 500 12 128 / 1024 events (1 event=1 k samples) QUOTE
DT5743 DT5743 Desktop 8 3200 (Based on SAMLONG chip: 3.2 GS/s Switched Capacitor Array, 2 channels with 1024 storage cells each.) 500 12 7 events (1 event=1 k samples) QUOTE
DT5751 DT5751 Desktop 2(DES mode) – 4 2000(DES mode) – 1000 500 10 3.6 M(DES mode) – 1.8 M QUOTE
DT5761 DT5761 Desktop 1 4000 1000 10 7.2 M QUOTE
N6720 N6720 NIM 4 / 2 250 125 12 1.25 M / 10 M QUOTE
N6724 N6724 NIM 4 / 2 100 40 14 512 k QUOTE
N6725 N6725 NIM 8 250 125 14 640 k / 5.12 M QUOTE
N6730 N6730 NIM 8 500 250 14 640 k / 5.12 M QUOTE
N6740 N6740 NIM 32 62.5 30 12 192 k QUOTE
N6740D N6740D NIM 32 62.5 30 12 192 k QUOTE
N6742 N6742 NIM 16 + 1 5000 (Based on DRS4 chip: 5 GS/s Switched Capacitor Array, 8+1 channels with 1024 storage cells each.) 500 12 128 / 1024 events (1 event=1 k samples) QUOTE
N6743 N6743 NIM 8 3200 (Based on SAMLONG chip: 3.2 GS/s Switched Capacitor Array, 2 channels with 1024 storage cells each.) 500 12 7 events (1 event=1 k samples) QUOTE
N6751 N6751 NIM 2(DES mode) – 4 2000(DES mode) – 1000 500 10 3.6 M(DES mode) – 1.8 M / 28.8 M(DES mode) – 14.4 M QUOTE
N6761 N6761 NIM 1 4000 1000 10 7.2 M QUOTE
V1720 V1720 VME 8 250 125 12 1.25 M / 10 M QUOTE
V1724 V1724 VME 8 100 40 14 512 k / 4 M QUOTE
V1725 V1725 VME 8 / 16 250 125 14 640 k / 5.12 M QUOTE
V1730 V1730 VME 8 / 16 500 250 14 640 k / 5.12 M QUOTE
V1740 V1740 VME 64 62.5 30 12 192 k / 1.5 M QUOTE
V1740D V1740D VME 64 62.5 30 12 192 k QUOTE
V1742 V1742 VME 32 + 2 5000 (Based on DRS4 chip: 5 GS/s Switched Capacitor Array, 8+1 channels with 1024 storage cells each.) 500 12 128 / 1024 events (1 event=1 k samples) QUOTE
V1743 V1743 VME 16 3200 (Based on SAMLONG chip: 3.2 GS/s Switched Capacitor Array, 2 channels with 1024 storage cells each.) 500 12 7 events (1 event=1 k samples) QUOTE
V1751 V1751 VME 2(DES mode) – 4 2000(DES mode) – 1000 500 10 3.6 M(DES mode) – 1.8 M / 28.8 M(DES mode) – 14.4 M QUOTE
V1761 V1761 VME 2 4000 1000 10 7.2 M / 57.6 M QUOTE
VX1720 VX1720 VME64X 8 250 125 12 1.25 M / 10 M QUOTE
VX1724 VX1724 VME64X 8 100 40 14 512 k / 4 M QUOTE
VX1725 VX1725 VME64X 8 / 16 250 125 14 640 k / 5.12 M QUOTE
VX1730 VX1730 VME64X 8 / 16 500 250 14 640 k / 5.12 M QUOTE
VX1740 VX1740 VME64X 64 62.5 30 12 192 k / 1.5 M QUOTE
VX1740D VX1740D VME64X 64 62.5 30 12 192 k / QUOTE
VX1742 VX1742 VME64X 32 + 2 5000 (Based on DRS4 chip: 5 GS/s Switched Capacitor Array, 8+1 channels with 1024 storage cells each.) 500 12 128 / 1024 events (1 event=1 k samples) QUOTE
VX1743 VX1743 VME64X 16 3200 (Based on SAMLONG chip: 3.2 GS/s Switched Capacitor Array, 2 channels with 1024 storage cells each.) 500 12 7 events (1 event=1 k samples) QUOTE
VX1751 VX1751 VME64X 2(DES mode) – 4 2000(DES mode) – 1000 500 10 3.6 M(DES mode) – 1.8 M / 28.8 M(DES mode) – 14.4 M QUOTE
VX1761 VX1761 VME64X 2 4000 1000 10 7.2 M / 57.6 M QUOTE
